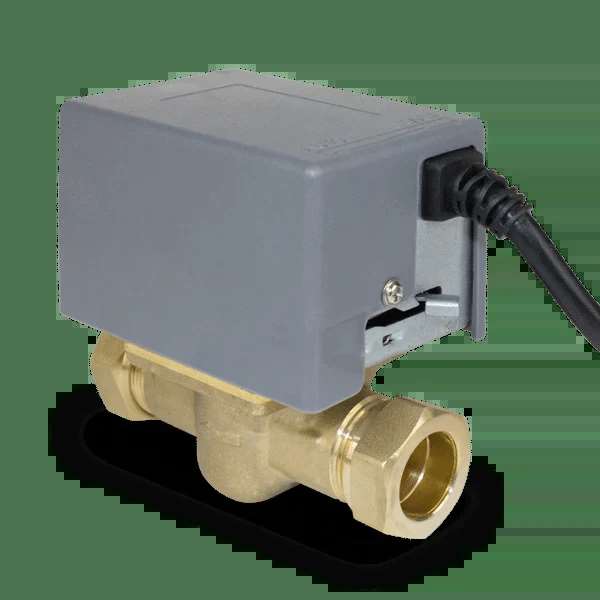

The electrically operated zone valve is designed to control the flow of water in a central heating system. The body is made of brass, on which an actuator with a return spring and a limit switch is mounted. It is possible to open the valve manually and lock it. The actuator is made in the NC version (closed currentless device).
Characteristics
✔ Industry colour coded wiring with 1m cable✔ Detachable head
✔ Standard hydraulic and electrical connections
✔ Suitable for heating and cooling installations
✔ Removable actuator housing
✔ Standard wiring Compatible with Honeywell bodies
✔ 5 year warranty
|
Power |
2 Port Motorised Valve |
|
Power Consumption |
6W |
|
Output |
NO/COM |
|
Liquid Temperature Range |
5°C - 88°C |
|
Max. Static Pressure |
8.6 Bar |
|
Differential Pressure |
1” – 0.8 bar ¾” – 0.6 bar |
|
Protection class |
IP20 |
|
Max. Load |
3A |
|
Dimensions (mm) |
87 x 55 x 60 |
