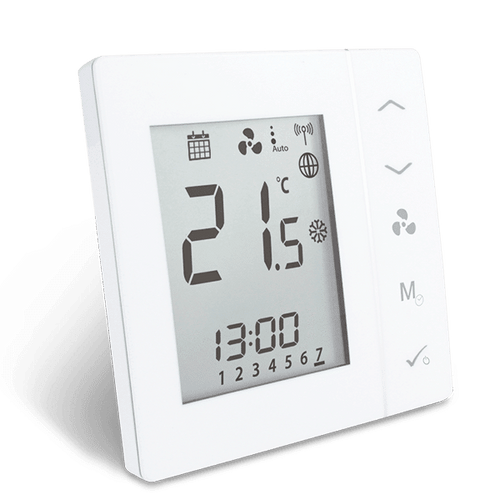

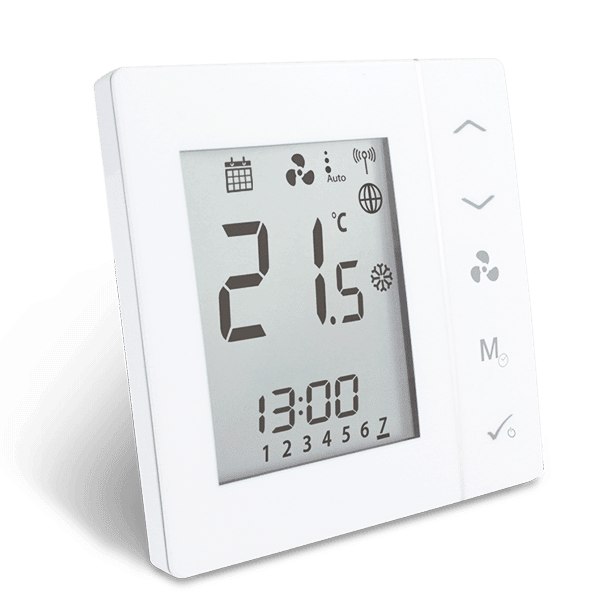

The SALUS FC600 allows you to reduce energy consumption whilst providing efficient temperature and thermal comfort in places where it is required. Integrates with other products in the SALUS Smart Home range.
5 year warranty.
|
Power Supply: |
230V AC |
|
Control outputs: -Fan speed control (I, II, III gear) -Valve actuator (cooling/ heating) |
230V AC |
|
Wireless Standard: |
2.4Ghz Zigbee |
|
Temperature range: |
5 – 40°C |
|
Size (mm): |
W-86 H-86 D-42 |
Wiring
|
L |
230 V AC Live input |
|
N |
230 V AC Neutral input |
|
V1 |
4 pipe: for Hot Water valve output |
|
2 pipe: for Heating or Cooling valve output |
|
|
V2 |
4 pipe: for Chilled water valve output |
|
2 pipe: no need to wire the V2 output |
|
|
F1 |
Fan Speed control (Low level) |
|
F2 |
Fan Speed control (Medium level) |
|
F3 |
Fan Speed control (High level) |
|
S1 |
Heat/Cool changeover or pipe sensor |
|
S2 |
Occupancy sensor or external sensor |
|
COM |
Common Terminal |
